Taking temperature and relative humidity measurements in LabVIEW in 5 simle steps

Relative humidity and temperature measurements

Dracal USB temperature and relative humidity sensors

Dracal Technologies’ TRH-series USB adapters provide a reliable and straightforward solution for taking reliable temperature and relative humidity measurements and interface with your current system. For added precision, you can choose the optional user-calibration feature, enabling you to adjust the device to your specific requirements and achieve optimal accuracy. Additionally, an optional Virtual COM protocol feature allows for seamless integration with a wide range of platforms, ensuring flexible data communication. These robust USB sensors also come with free, easy-to-use USB DAQ software for data visualization and logging tasks and a comprehensive set of code examples for quick interfacing with systems such as LabVIEW, Python, C++, and more.

What will your configuration be?

• The two rows represent the 2 possible operational mode of our instruments, which is USB or VCP. Instruments in USB mode have to be querried by our free command-line tools, while those with VCP mode can be querried directly from the instrument, without the need of our free, but proprietary, tools.
• The two columns represent the way to connect the instrument to the PC, which is either directly via a USB port on your PC, or wirelessly (Wi-Fi/Ethernet) using our SensGate gateway.

	PC-connected	Wi-Fi/Ethernet-connected
USB	CONFIGURATION 1 Dracal temperature and relative humidity sensors physically connected to a PC via USB and systems that can invoke our free command-line tools.	CONFIGURATION 3 Dracal temperature and relative humidity sensors that connect wirelessly to a PC via a SensGate and systems that can invoke our free command-line tools.
COM	CONFIGURATION 2 Dracal temperature and relative humidity sensors physically connected to a PC via USB and systems that prefer to talk directly to the device via the COM protocol.	CONFIGURATION 4 Dracal temperature and relative humidity sensors that connects wirelessly to a PC via a SensGate and systems that prefer to talk directly to the device via the COM protocol.



Step 1. Get your equipment

Whichever your set-up, you will need the following three elements:

• 1 X PC (Windows, Mac or Linux) with LabVIEW installed
• 1 X Dracal TRH-series temperature and relative humidity sensor

Additional equipment/option for your specific set-up is:

	PC-connected	Wi-Fi/Ethernet-connected
USB	CONFIGURATION 1 -	CONFIGURATION 3 1 X SensGate
COM	CONFIGURATION 2 VCP option on your Dracal TRH-series sensor	CONFIGURATION 4 VCP option on your Dracal TRH-series sensor 1 X SensGate



Step 2. Download the free DracalView software & tools

Download our free USB DAQ (Windows, Mac, Linux), which includes the DracalView graphical interface and interfacing tools. When you receive your Dracal USB temperature and relative humidity sensor, you'll be able to get to work straight away, using the DracalView GUI to quickly visualize your temperature and relative humidity measurements. For calibratable models, calibration can also be performed intuitively with DracalView.

Step 3. Switch your sensor to Virtual COM mode (configs. 2 & 4 only)

* For more information on VCP, consult the complete VCP documentation.

For users that chose to work in virtual COM mode, switch your device from USB to VCP mode. This is done via our command line tool dracal-usb-set (quick start guide with command line tools here). To do this, execute the command set_protocol VCP followed by the the reset command to create a virtual device disconnection. In the following example, this procedure is illustrated on a device whose serial number is E16026.

C:Program Files (x86)DracalView>  dracal-usb-set -s E16026 set_protocol VCP
C:Program Files (x86)DracalView>  dracal-usb-set -s E16026 reset

If only one Dracal sensor is connected to your computer when executing these commands, you can omit to specify the serial number of your device (as there is only one) by using the option -f as in the following example:

C:Program Files (x86)DracalView>  dracal-usb-set -f set_protocol VCP
C:Program Files (x86)DracalView>  dracal-usb-set -f reset

Note for Windows users: When executing the command reset, the following echo will be returned in your terminal:

C:Program Files (x86)DracalView>  dracal-usb-set -f reset
USB control message error: usb_control_msg: sending control message failed, win error: The device does not recognize the command.

This behaviour is normal and confirms that the disconnection was successfully completed.



Step 4. Connect the SensGate to your network (configs. 3 & 4 only)

Step-by-step procedure to connect your SensGate to an existing network here. If you prefer to create your own sub-network for your project, follow this step.



Step 5. Download and run your ready-made LabVIEW model

Each of the above configurations is associated with a downloadable template in the table below. Click on the images to enlarge them and get a better view of the block diagram and main window of the proposed template.

Models 1) & 3) leverage Dracal's command line tools, ideal for Dracal sensors connected via USB either to the computer or, with some minor adjustments, to a SensGate (Wi-Fi/Wireless gateway). This solution is for instruments without the virtual COM protocol option. This method is simple and effective, allowing LabVIEW to directly access sensor data using preconfigured commands that retrieve real-time measurements. With these tools, users can easily integrate temperature and relative humidity (and even dew point!) readings into their LabVIEW project within minutes.

For users who have opted for the serial protocol, the models 2) and 4) offer a different approach, communicating with the instruments via a virtual serial port. In model 2), the VISA (Virtual Instrument Software Architecture) functions built into LabVIEW make this integration straightforward, facilitating direct read/write commands to the sensor. This model gives users better control over data acquisition and allows for more advanced customization in LabVIEW. In model 4) for Wi-Fi/Ethernet connectivity, the REST API available in SensGate enables direct access to your sensor data via an HTTP block.



	PC-connected	Wi-Fi/Ethernet-connected

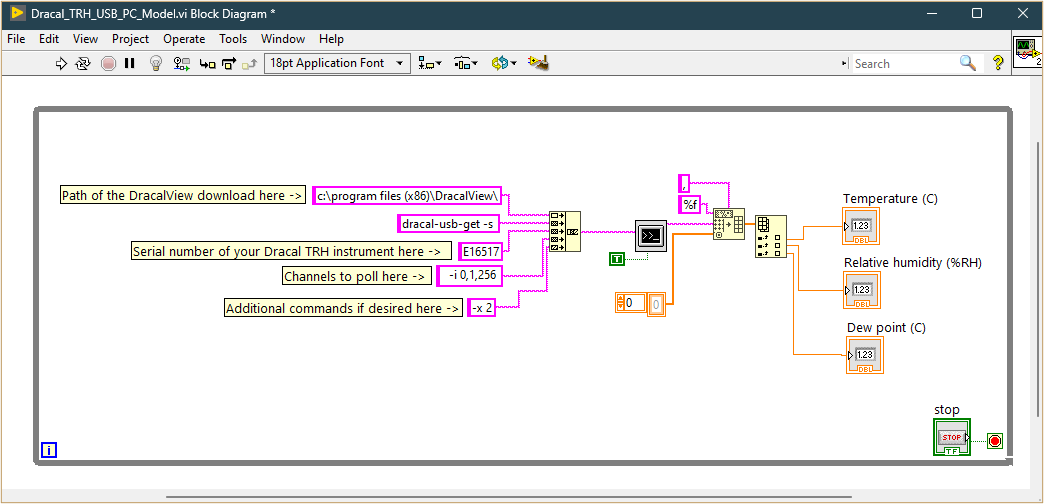

USB	CONFIGURATION 1   Dracal_TRH_USB_PC_Model.vi	CONFIGURATION 3   Dracal_TRH_USB_WiFi&Ethernet_Model.vi
COM	CONFIGURATION 2   Dracal_TRH_VCP_PC_Model.vi	CONFIGURATION 4   Dracal_TRH_VCP_WiFi&Ethernet_Model.vi

Conclusion

As you can see, getting relative humidity and temperature measurements with LabVIEW is a matter of a few minutes. All 4 configurations are supported by Dracal’s extensive library of code examples, ensuring a smooth integration experience, regardless of the communication protocol (USB vs VCP) or the connection type (USB vs Wi-Fi/Ethernet) chosen.
